Fireproof coating system for electrical cables and pipelines
When a fire occurs, certain important fire-fighting facilities, such as smoke exhaust fans, fire elevators, fire alarm systems and emergency lighting systems, need to maintain continuous power supply to ensure their normal operation and to fulfill their intended functions. Therefore, the power cables for these fire-fighting facilities must adopt necessary fire protection measures.
Application
Suitable for environments in buildings that are vulnerable to fire attacks and require special protection for electrical wires and cables.
The electrical wire and cable fireproof coating system ensures that certain important fire-fighting facilities, such as smoke exhaust fans, fire elevators, fire alarm systems and emergency lighting systems, can maintain continuous power supply to ensure their normal operation and fulfill their intended functions during a fire.
Specifications

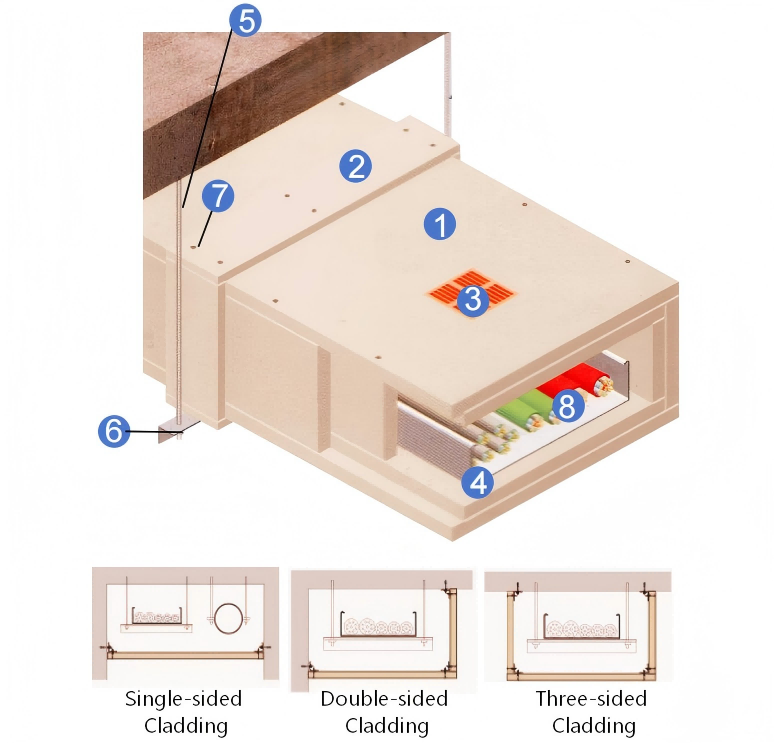

3-hour fireproof coating for electrical cables and pipelines
The 180-minute fire resistance limit tested in accordance with the GB/T 17428: 2009 standard:
1. 2 layers * 20mm thick safety fireproof board
2. 100mm wide x 12mm thick safety fireproof board strips
3. Fireproof grille
4. 40mm x 40mm x 0.6mm thick L-shaped light steel keel
5. Threaded round steel suspension rods, maximum allowable stress 10N/mm²
6. Angle steel or channel steel crossbars determined according to the load-bearing weight, size and maximum allowable stress of the air duct
7. M4 self-tapping screws, spacing approximately 200mm
8. Electrical wires and cables
