Raised Floor
Modern suspended flooring is suitable for high-end residential buildings and large data centers
- Size:
- 600*600mm
- 800*800mm
- Thickness:
- 18mm
- 20mm
- 22mm
- 24mm
- Overview
- Applications
- Specifications
- Competitive Advantage
- Recommended Products

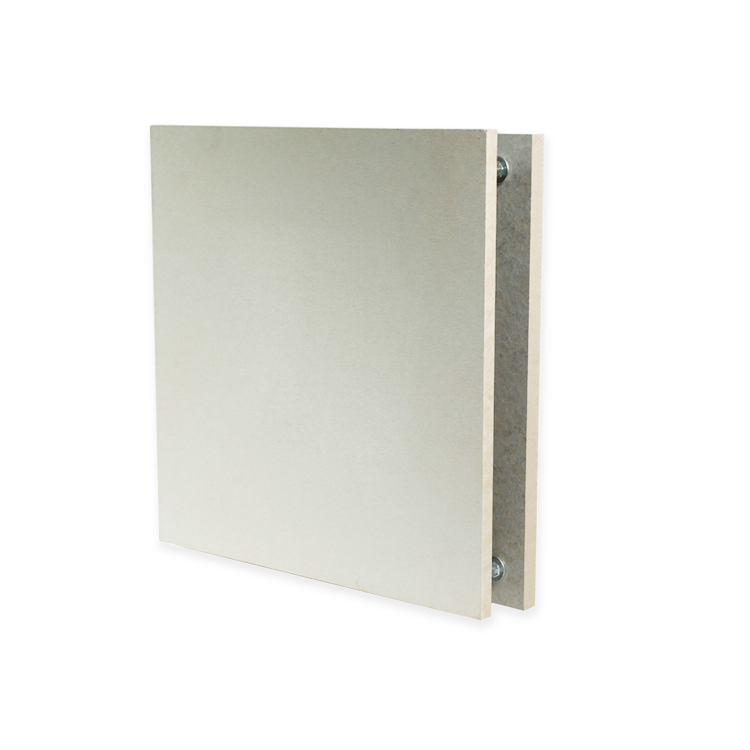

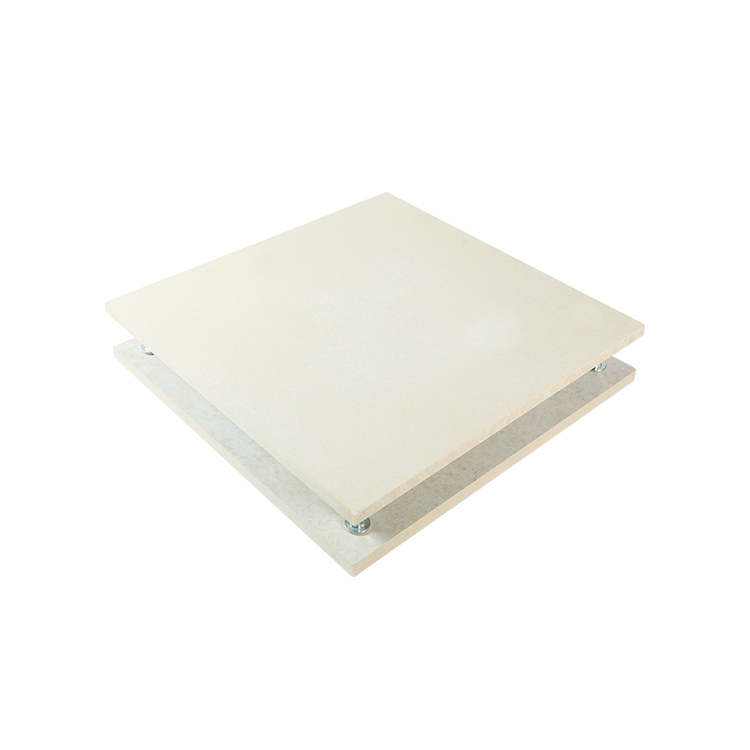

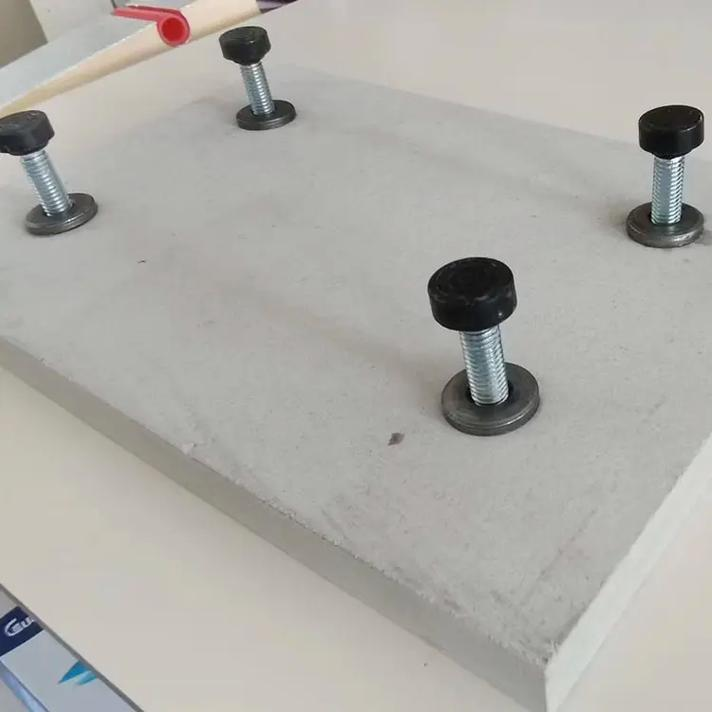

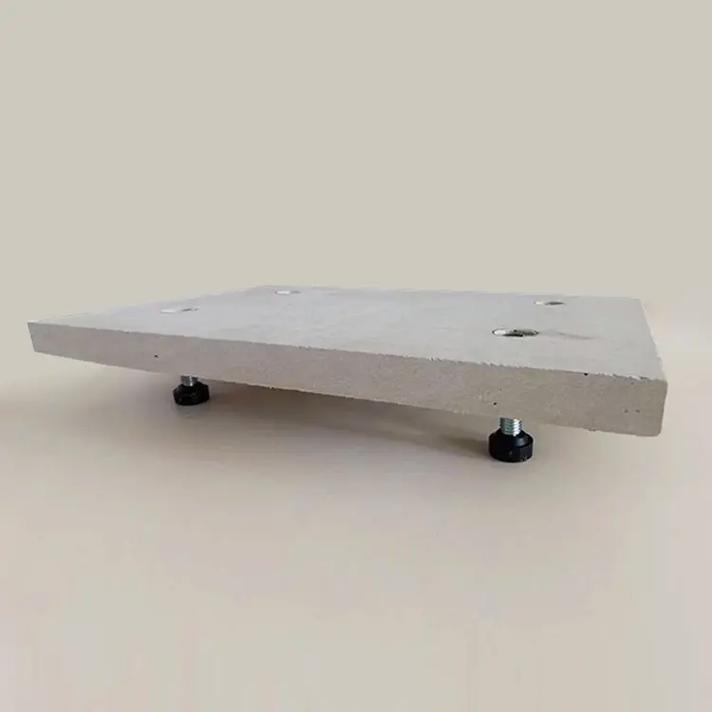

Composed of high-performance fiber-reinforced cement boards and adjustable metal support bolts, this system allows for precise leveling adjustments and ensures quick and easy installation.
Applications
Data centers and computer rooms, clean workshops and dust-free environments, intelligent offices and office buildings, banks, telecommunications, power dispatch centers, hospitals, laboratories and medical equipment rooms, military, aviation, and transportation command centers, school computer rooms, health care institutions and other public facilities
 |
 |
 |
 |
Specifications
| Item | Index |
| Density | ≥1.35g/cm3 |
| Bending Strength(Dry) | ≥13MPa |
| Impact Strength | 1.4kj/m2 |
| Thermal Conductivity | ≤0.35W/m.K |
| Water Absorption Rate | ≤ 29% |
| Wet Expension Rate | ≤0.15% |
| Concentrated Load | ≥800 kgs |
| Uniform Load | ≥1000 kgs |
| Non-Combustibility | EN13501-1-2018, Class A1 |
| Asbestos Content | 100% Asbestos Free |
| Quality Management System | ISO9001-2015 |
| Environment Management System | ISO14001-2015 |
| National Certification | CE(EN13501-1:2018, EN12467:2012 +A2:2018 |
| Radioactivity | Ira<1.0; Ir<1.0 |
| Generation of toxic fumes | AQ1 |
Competitive Advantage
 |
1. Class A1 Non-Combustible – Fire-Resistant The fiber cement board meets the Class A1 fire rating standard – it does not burn and does not produce toxic smoke when exposed to fire. Even in high-temperature or open-flame environments, it effectively blocks the spread of fire, building the first line of defense for building safety. |
 |
2. High Strength & Impact Resistance – Toughness Against Cracking The board has high strength and outstanding impact resistance, making it difficult to damage from external impacts. Combined with excellent deformation resistance, it maintains a flat, crack-free surface even under long-term wind pressure, vibration, or temperature fluctuations. |
 |
3. Moisture & Mold Resistant – Unafraid of Humid Environments The board does not absorb water, resists mold growth, and has strong freeze-thaw durability. Whether in high-humidity coastal areas or freezing weather, it maintains stable performance, completely solving the problem of traditional panels that swell or develop mold when exposed to moisture. |
 |

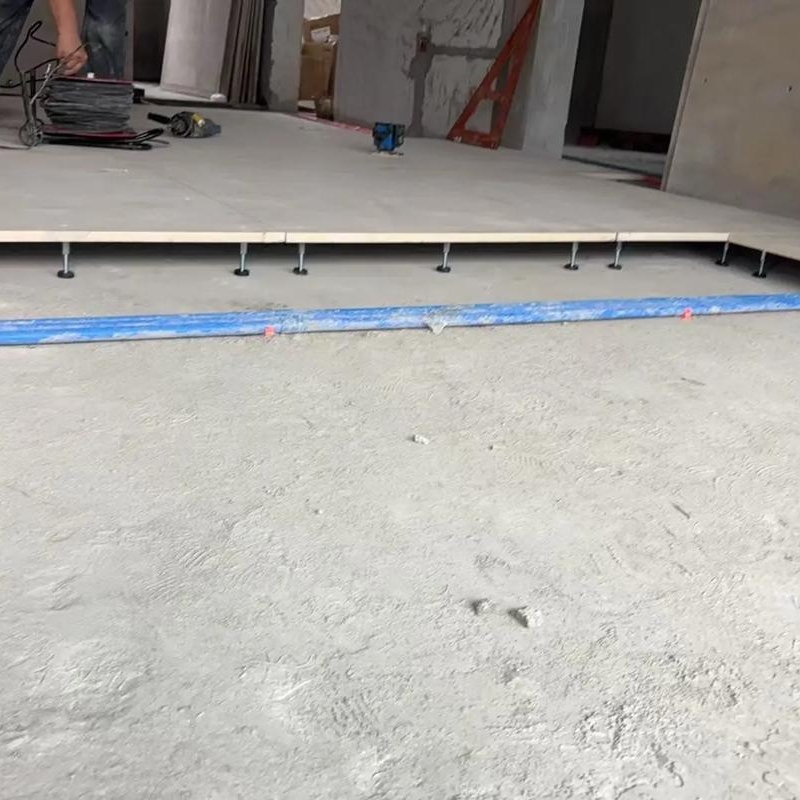

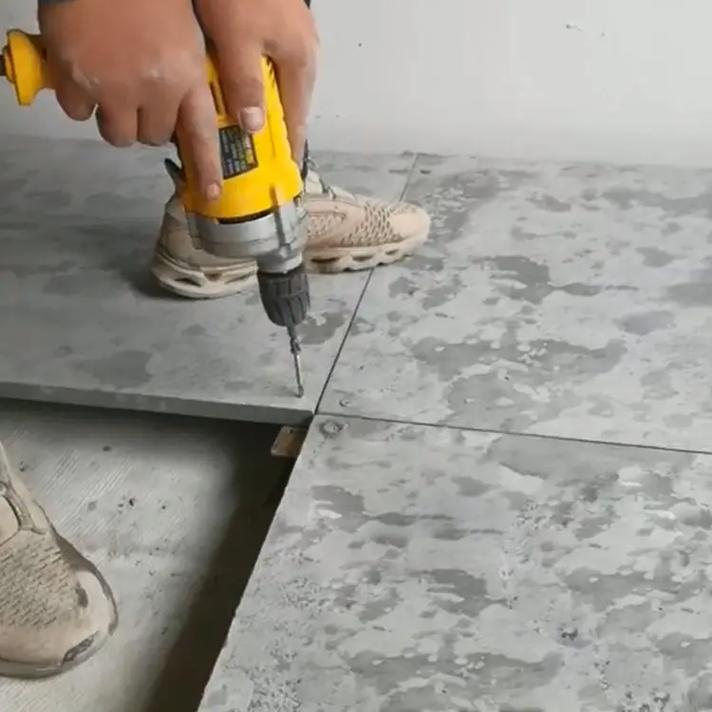

4. Easy Installation – Long-Lasting Durability for Peace of Mind Using dry construction methods in conjunction with light-gauge steel furring channels, the board is easy to cut and quick to install, greatly shortening the construction period. With ultra-long durability – once installed, it requires no frequent repairs or replacements for decades – it saves you both worry and money. |
