Steel structure (steel beams/steel columns) fireproof coating system
The critical temperature of steel components is between 550℃ and 620℃, and it is prone to damage or collapse. The building design fire protection regulations require the fire resistance limit of first-class building components. The beam has a fire resistance limit of 120 minutes, and the column has a fire resistance limit of 180 minutes. The安心fireproof board is used to slow down the temperature rise of the steel， maintaining the stability of the steel and providing sufficient time and guarantee for rescue.
Application
1. Various steel structures in buildings such as factories, residences, commercial buildings, and light steel structure houses for villas, including steel beams and steel columns.
2. Steel structure roof systems.
3. Truss and other steel structure support system
Specifications

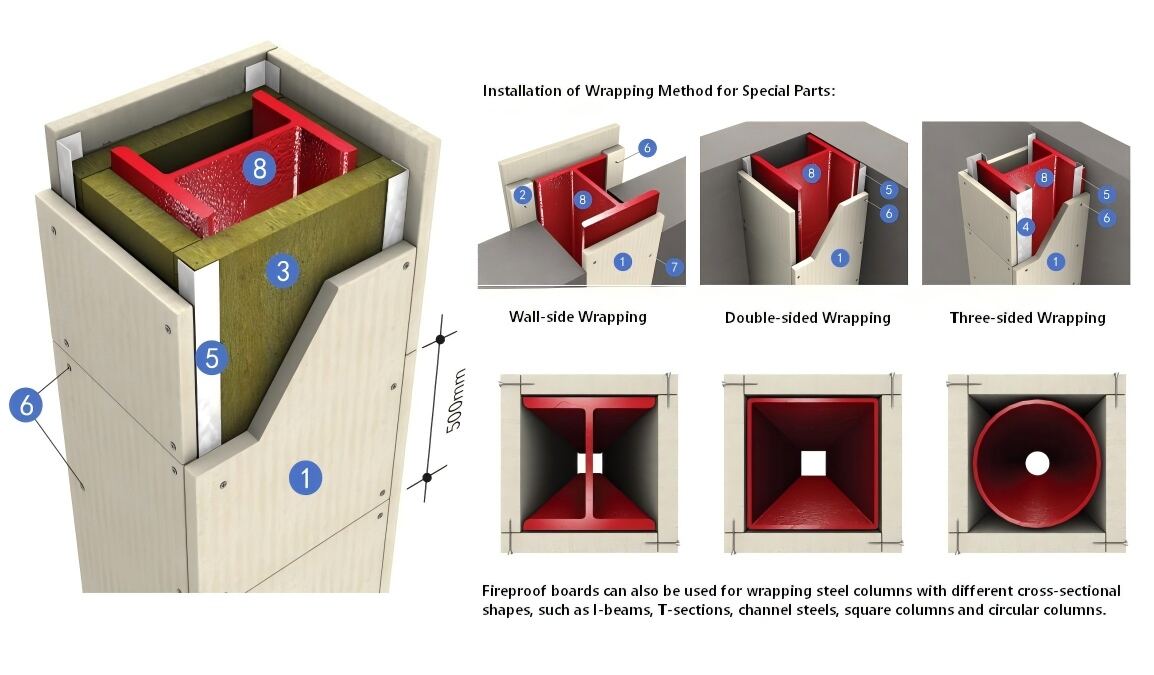

3-hours Cladding Methods for Steel Columns
A 180-minutes fire resistance rating tested according to GB/T 51249-2017 standards.
1. 12mm thick fireproof board
2. 12mm thick fireproof boards
3. Density 100/110kg/m3 fire-resistant rock wool;
4. 50mm * 40mm * 0.6mm U shaped light gauge steel track
5. 40mm * 40mm * 0.6mm L shaped light gauge steel track
6. M4 self-taping screws, spaced approximately 200 apart
7. M6 self-taping screws, spaced approximately 300 apart
8. Steel Columns
4-hours Cladding Methods for Steel Columns
A 240-minutes fire resistance rating tested according to GB/T 51249-2017 standards.
1. 2-layers 12mm thick fireproof board
2. 12mm thick fireproof boards
3. Density 100/110kg/m3 *50mm fire-resistant rock wool;
4. 50mm * 40mm * 0.6mm U shaped light gauge steel track
5. 40mm * 40mm * 0.6mm L shaped light gauge steel track
6. M4 self-taping screws, spaced approximately 200 apart
7. M6 self-taping screws, spaced approximately 300 apart
8. Steel Columns

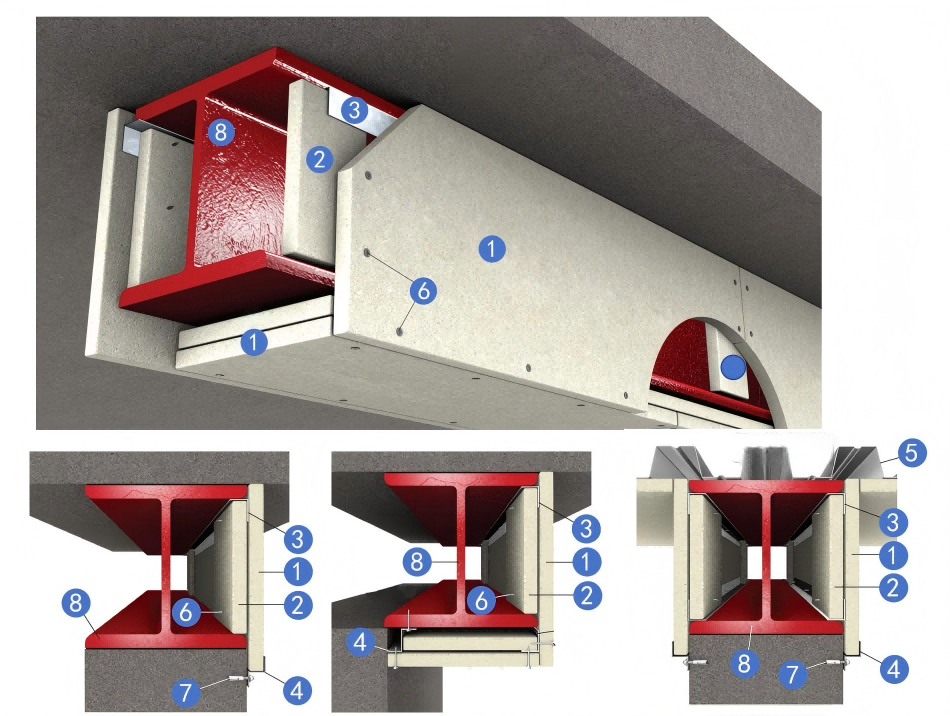

Two-hour steel beam fireproof coating
A 120-minutes fire resistance rating tested according to GB/T 51249-2017 standards.
1. 15mm thick fireproof board
2.W120mm *T15mm fireproof boards
3. 30mm * 30mm * 0.6mm L shaped light gauge steel track
4. 30mm * 40mm * 0.6mm Z shaped light gauge steel track
5.Profiled Steel Sheet
6. M4 self-taping screws, spaced approximately 200 apart
7. M6 expansion bolts
8. Steel Beam
